KZF Close type pneumatic and hydraulic quick coupling

KZF is a brand that produces close type pneumatic and hydraulic quick couplings. These couplings are designed to provide a fast and efficient way to connect and disconnect fluid lines in pneumatic and hydraulic systems.
The KZF quick couplings are made of high-quality materials, such as stainless steel or brass, to provide durability and resistance to corrosion. They are available in various sizes and configurations to accommodate different types of fluid lines and fittings.
The close type design of KZF quick couplings means that they have a built-in valve that closes automatically when disconnected, helping to prevent fluid loss and contamination. They are also designed with a locking mechanism to ensure a secure and leak-free connection.
KZF quick couplings are widely used in various applications, such as industrial machinery, automotive, and construction equipment.
Get A Quote
  • Parameter
  • Contact Us
  • Body Size(in) 1/8 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2
    Code 01 02 03 04 06 08 10 12 16
    Rated Pressure ( Mpa ) 13.8 13.8 10.4 10.4 10.4 7 7 7 7
    Rated Flow(L/min) 3.8 11.5 23 45.5 106 190 330 830 900
    Temperature Range(NBR) -20℃ ~ +180℃

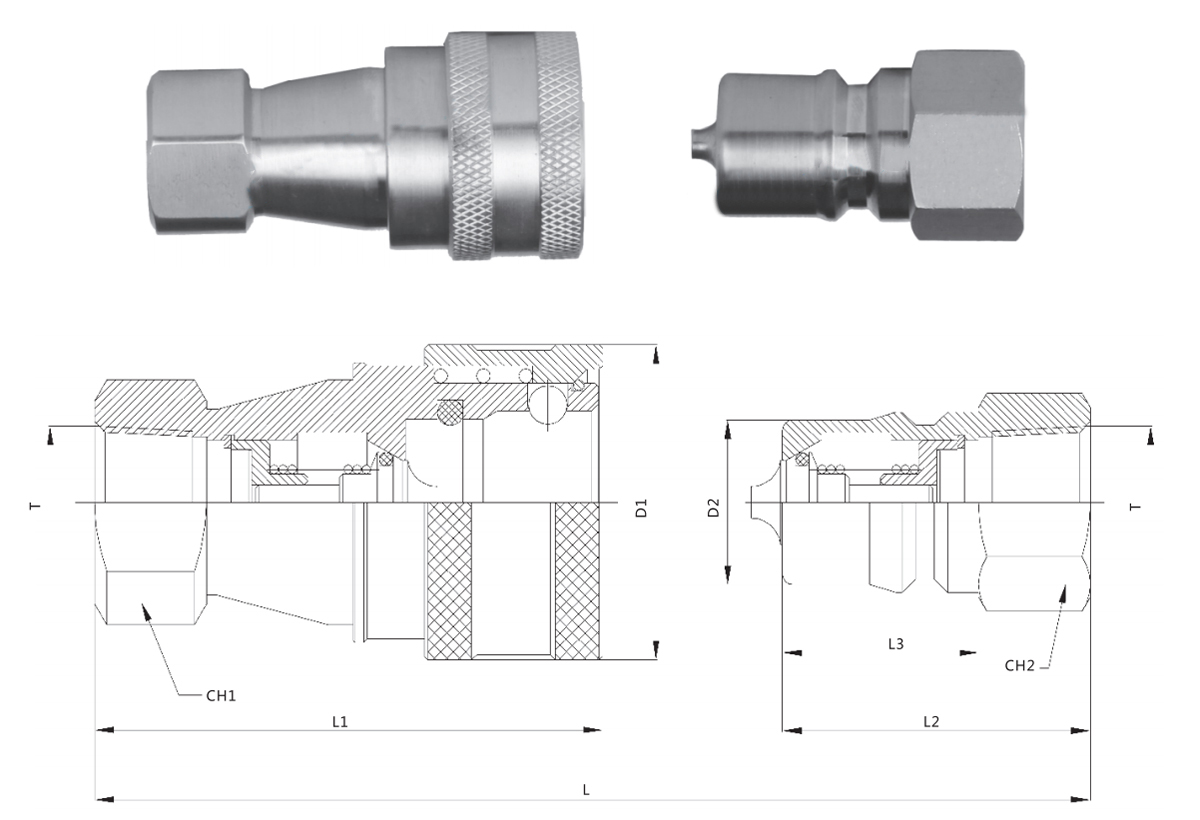

    PART No. ISO L L1 L2 L3 D1 D2 CH1 CH2 T
    KZF-01-SP DN5 59 48 29 19 24 10.9 14 14 ZG1/8 G1/8 NPT1/8
    KZF-02-SP DN6.3 72 58 36 22.5 27 14.2 19 17 ZG1/4 G1/4 NPT1/4
    KZF-03-SP DN10 80 65 40 25 35 19.1 22 22 ZG3/8 G3/8 NPT3/8
    KZF-04-SP DN12.5 89 72.5 44 28 45 23.6 29 27 ZG1/2 G1/2 NPT1/2
    KZF-06-SP DN20 105 88 52 36 54 31.5 36 36 ZG3/4 G3/4 NPT3/4
    KZF-08-SP DN25 125 102 62 40 64.5 37.8 41 41 ZG1 G1 NPT1
    KZF-10-SP DN31.5 141 115 70 45 68 45 54 52 ZG1-1/4 G1-1/4 NPT1-1/4
    KZF-12-SP DN40 150 127 75 49 78 50 60 60 ZG1-1/2  G1-1/2 NPT1-1/2
    KZF-16-SP DN50 160 132 80 52 102 70 77 77 ZG2 G2 NPT2
