GT-CT Double acting sleeve push and pull type hydraulic quick coupling

The GT-CT double-acting sleeve push-and-pull type hydraulic quick coupling is a type of hydraulic coupling used for quick and easy connection and disconnection of hydraulic lines. Some common features of the GT-CT coupling include:
Double-acting: The coupling can be connected and disconnected from both ends, making it more versatile than single-acting couplings.
Push-and-pull type: The coupling is designed with a sleeve that can be pushed or pulled to connect or disconnect the coupling.
Quick connection: The coupling allows for quick and easy connection and disconnection of hydraulic lines, reducing downtime and increasing efficiency.
High flow capacity: The coupling has a high flow capacity, allowing for the efficient transfer of hydraulic fluid.
Pressure rating: The coupling is designed to handle high pressures, typically up to 5000 psi.
Compatibility: The coupling can be used with a variety of hydraulic fluids, including oil, water, and synthetic fluids, and is compatible with many types of hydraulic systems.
Get A Quote
  • Parameter
  • Contact Us
  • Body Size(in) 1/2
    Rated Pressure ( Mpa ) 20.7
    Rated Flow(L/min) 45.5
    Temperature Range(NBR) -20℃ ~ +100℃

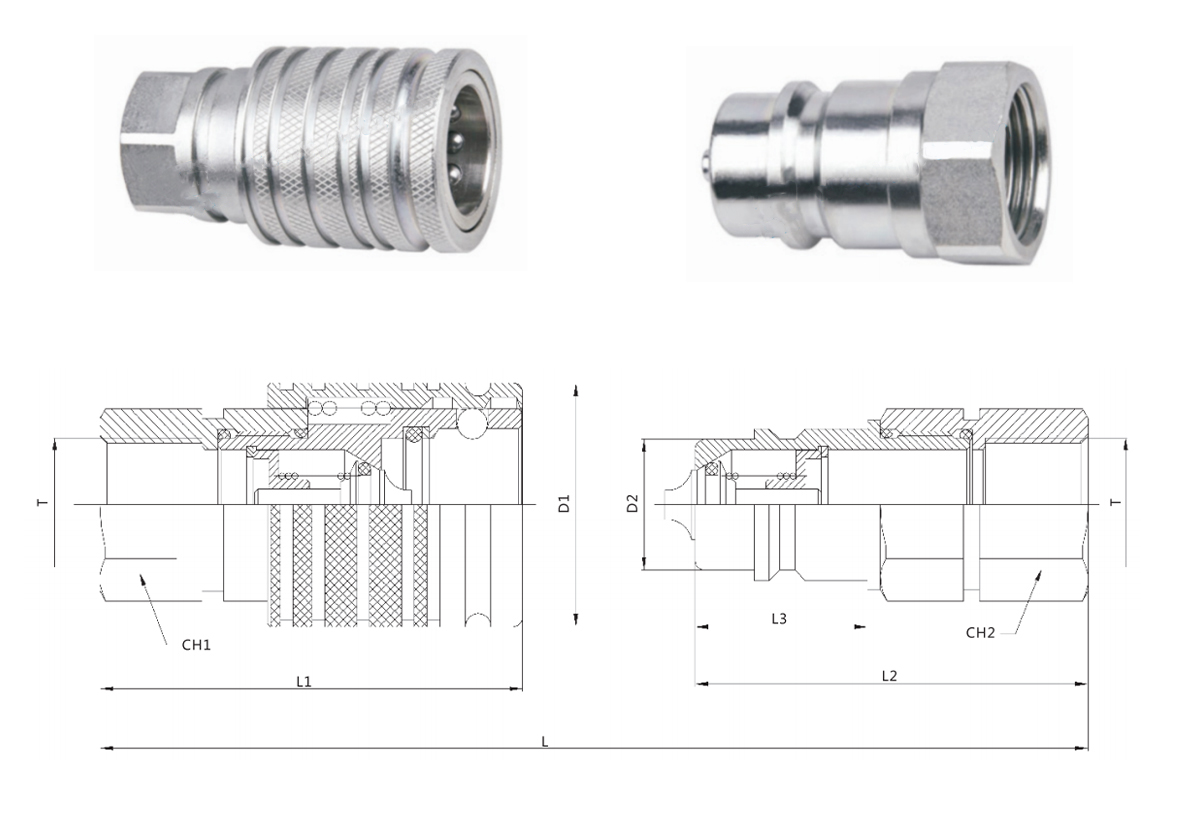

    PART No. L L1 L2 L3 D1 D2 CH1 CH2 T
    GT-CT-04F3/8 105.5 66 61.5 27 38 20.5 27 27 ZG3/8 G3/8 NPT3/8
    GT-CT-04F1/2 111.5 66 61.5 27 38 20.5 27 27 ZG1/2 G1/2 NPT1/2
    GT-CT-04F3/4 105.5 69 61.5 27 38 20.5 34 34 ZG3/4 G3/4 NPT3/4
    GT-CT-04FM14 105.5 66 61.5 27 38 20.5 27 27 M14*1.5
    M16*1.5
    M18*1.5
    M22*1.5
    GT-CT-04FM16 105.5 66 61.5 27 38 20.5 27 27
    GT-CT-04FM18 105.5 66 61.5 27 38 20.5 27 27
    GT-CT-04FM22 88 66 61.5 27 38 20.5 27 27

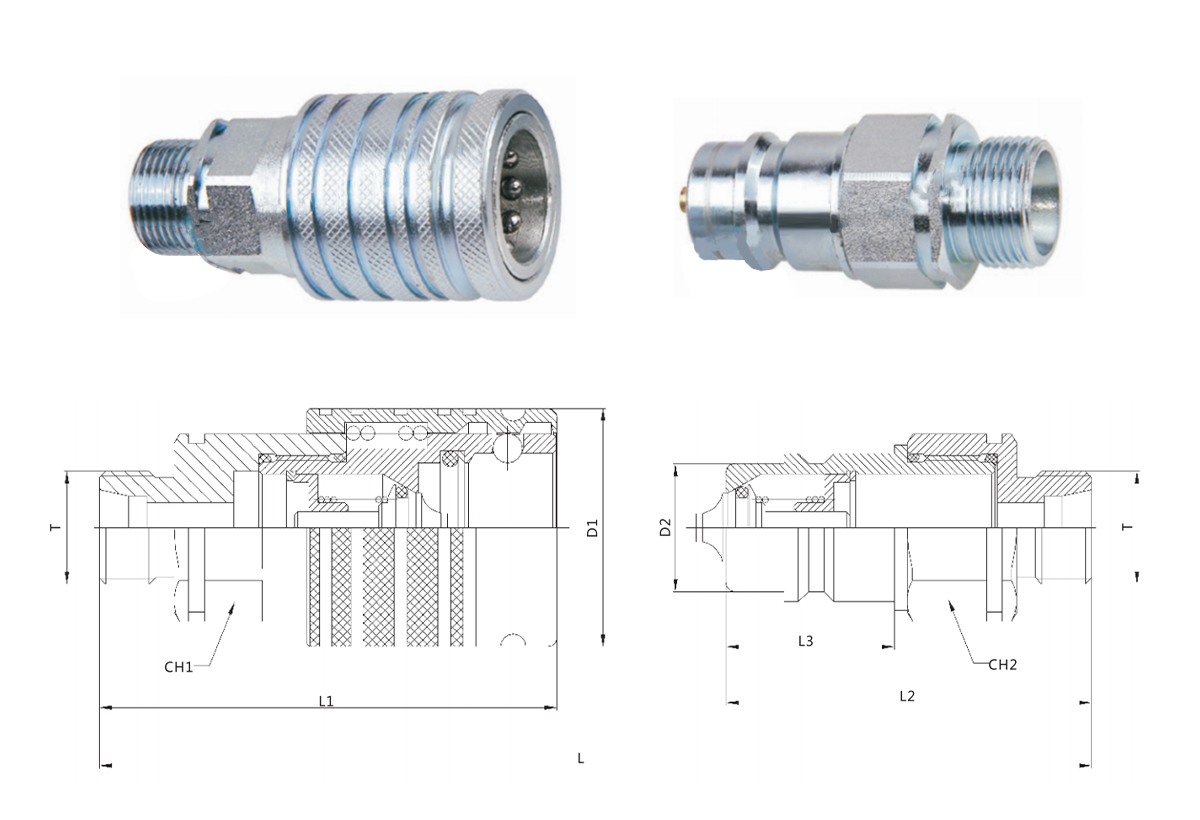

    PART No. L L1 L2 L3 D1 D2 CH1 CH2 T
    GT-CT-04-8L 110 73 58 27 38 20.5 27 27 M14*1.5
    GT-CT-04-10L 110 73 58 27 38 20.5 27 27 M16*1. 5
    GT-CT-04-12L 110 73 58 27 38 20.5 34 34 M18*1. 5
    GT-CT-04-15L 114 75 60 27 38 20.5 27 27 M22*1. 5
    GT-CT-04-18L 114 75 60 27 38 20.5 27 27 M26*1.5
    GT-CT-04-10S  1 10 73 58 27 38 20.5 27 27 M18*1.5
    GT-CT-04-12S 110 73 58 27 38 20.5 27 27 M20*1.5
    GT-CT-04-14S 114 75 60 27 38 20.5 27 27 M22*1.5
    GT-CT-04-16S 114 75 60 27 38 20.5 27 27 M24*1.5
    GT-CT-04-20S 128 77 72 27 38 20.5 30 30 M30*2

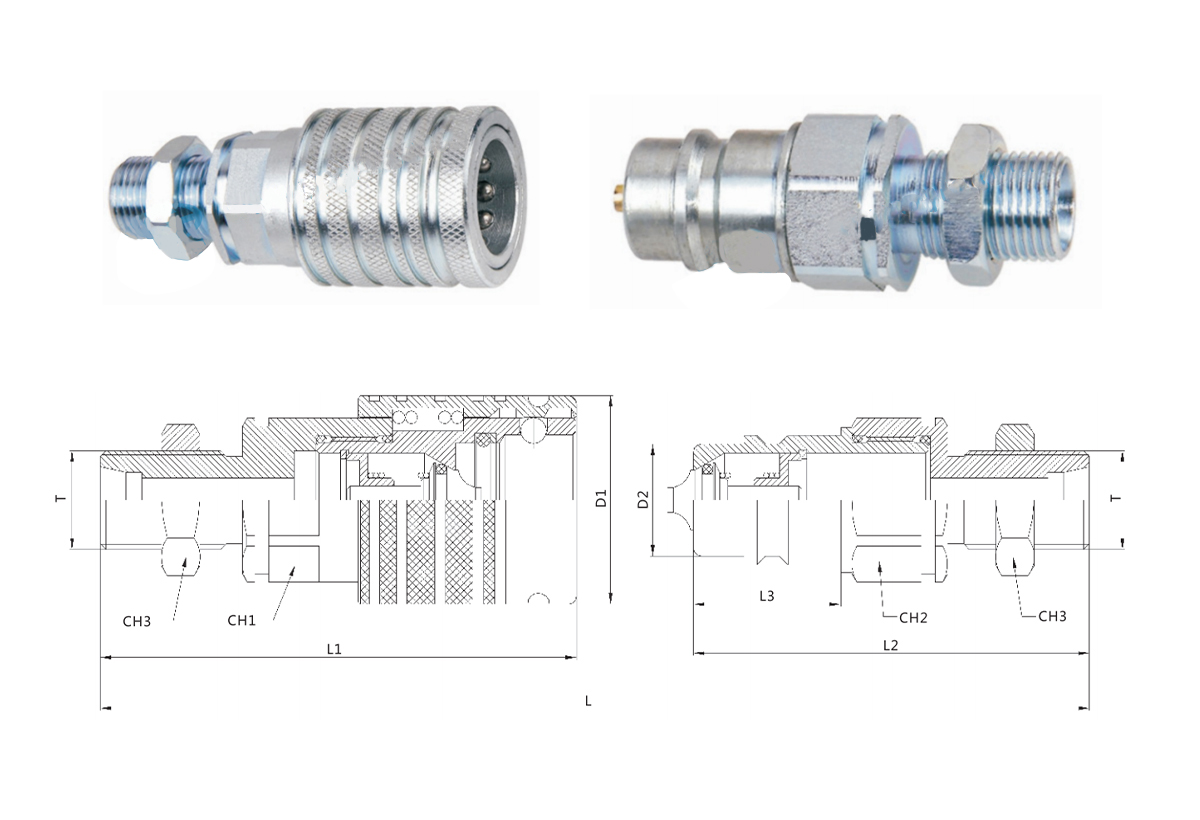

    PART No. L L1 L2 L3 D1 D2 CH1 CH2 CH2 T
    GT-CT-04-8LC 138 87 72 27 38 20.5 27 27 19 M14*1.5
    GT-CT-04-10LC 138 87 72 27 38 20.5 27 27 24 M16*1.5
    GT-CT-04-12LC 138 87 72 27 38 20.5 34 34 24 M18*1.5
    GT-CT-04-15LC 142 89 74 27 38 20.5 27 27 27 M22*1.5
    GT-CT-04-18LC 142 89 74 27 38 20.5 27 27 30 M26*1.5
    GT-CT-04-10SC 138 87 72 27 38 20.5 27 27 24 M18*1.5
    GT-CT-04-12SC 138 87 72 27 38 20.5 27 27 27 M20*1.5
    GT-CT-04-14SC 142 89 74 27 38 20.5 27 27 27 M22*1.5
    GT-CT-04-16SC 142 89 74 27 38 20.5 27 27 30 M24*1.5
    GT-CT-04-20SC 156 96 81 27 38 20.5 30 30 36 M30*2
