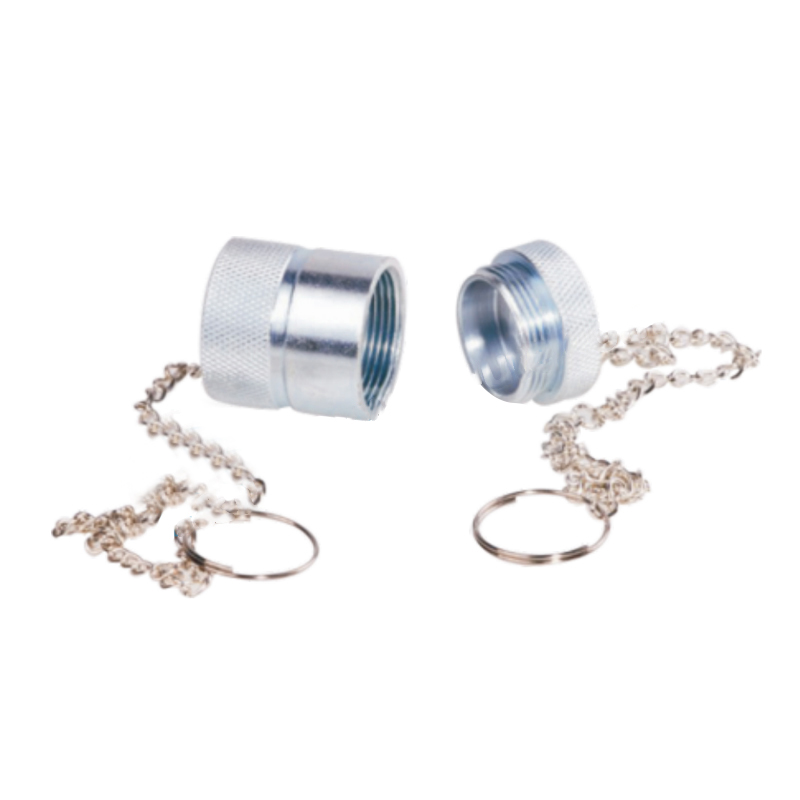

The internal valve mechanism of a Hydraulic Quick Coupler is precisely engineered to support high-efficiency fluid transfer. The valve components—such as poppets or balls—are shaped to minimize obstructions and turbulence when fluid passes through. By allowing a near-full bore opening when connected, the valve reduces flow resistance, which in turn minimizes pressure losses across the coupling. Precision machining of valve surfaces ensures consistent alignment and sealing without restricting hydraulic flow.
Advanced computational fluid dynamics (CFD) simulations are often used to design the flow channels within the coupler body. These flow paths are engineered to be smooth, with gradual transitions in cross-sectional area and curvature. By avoiding abrupt changes in geometry or sharp internal corners, the coupler reduces eddy currents and vortex formation that typically cause pressure drops. The streamlined flow channel ensures laminar or near-laminar flow, even at higher operating pressures.
Hydraulic Quick Couplers are rated for high flow capacity (measured in L/min or GPM), with internal diameters sized appropriately for the target application. Oversized flow paths relative to standard coupler dimensions allow hydraulic fluid to pass through at lower velocities, which significantly reduces pressure loss due to friction. In applications where flow rate is critical, such as in heavy machinery or agricultural equipment, high-capacity couplers ensure that the hydraulic power system remains efficient without overloading the pump.
The sealing components in a Hydraulic Quick Coupler, typically O-rings or molded elastomeric gaskets, are selected not only for chemical compatibility and durability but also for flow efficiency. These seals are seated in a way that does not protrude into the flow path, avoiding disruption of hydraulic flow. Low-friction, wear-resistant seal materials such as Viton or polyurethane are used to maintain long-term sealing performance without adding restriction. Precision-fit grooves ensure that sealing occurs with minimal axial displacement, further stabilizing internal pressure.
The coupler’s engagement mechanism is designed to allow for fast, low-resistance fluid passage as soon as the male and female components are joined. Some designs use flush-face or flat-face coupling interfaces to ensure a full and unrestricted bore when connected. This seamless transition from disconnected to connected state minimizes the pressure differential and prevents “pressure shock” in the system. The quick, clean connection also reduces fluid spillage and internal air ingress, both of which can contribute to pressure instability.
Some Hydraulic Quick Couplers integrate pressure compensation valves to maintain balance in differential pressure scenarios. This feature is especially useful in systems that are disconnected and reconnected under residual line pressure. The pressure compensation allows smooth coupling action without fluid surge or blockage, thereby stabilizing the downstream pressure profile. In advanced systems, this mechanism may include a pressure-relief feature that prevents system over-pressurization during reconnection.
