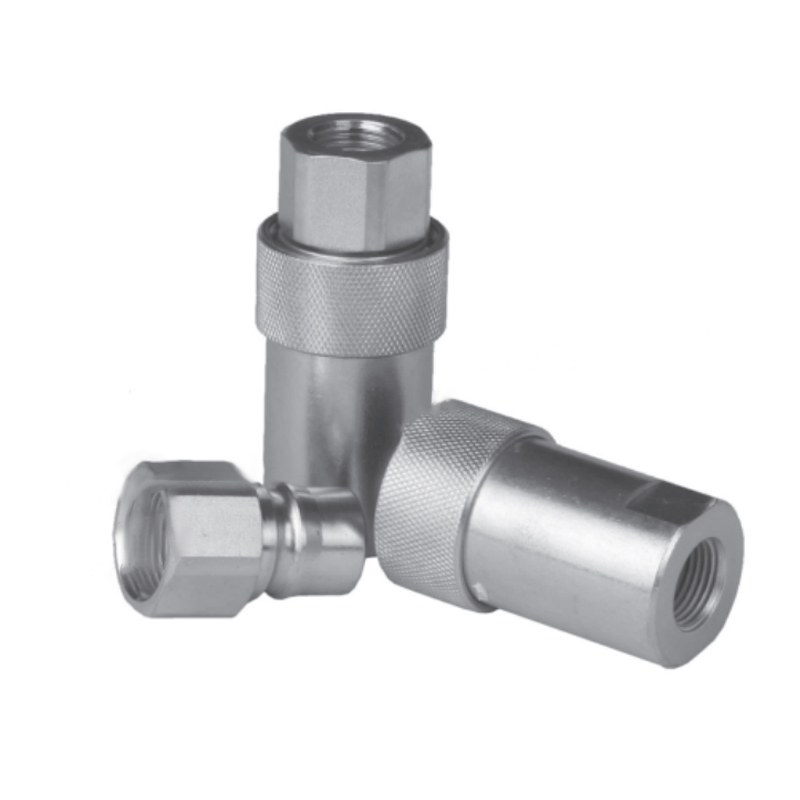

GT-L3 Manual wing nut thread type hydraulic quick coupling

The GT-L3 is a type of hydraulic quick coupling that is designed for manual operation. It features a wing nut thread type connection that allows for easy and quick attachment and detachment of hydraulic hoses and lines.
The GT-L3 coupling is made of high-quality steel, which provides durability and resistance to corrosion. It is designed for use in high-pressure applications and can handle a wide range of hydraulic fluids, such as oil and water.
The wing nut thread type connection on the GT-L3 coupling is designed for easy and quick manual operation, allowing users to quickly connect and disconnect hydraulic lines without the need for tools. This makes the coupling ideal for applications where speed and convenience are essential, such as in agricultural, construction, and industrial settings.
Get A Quote
  • Parameter
  • Contact Us
  • Body Size(in) 3/4 1
    Code 06 08
    Rated Pressure ( Mpa ) 27.6 20.7
    Rated Flow(L/min) 94.5 189
    Temperature Range(NBR) -20℃ ~ +100℃

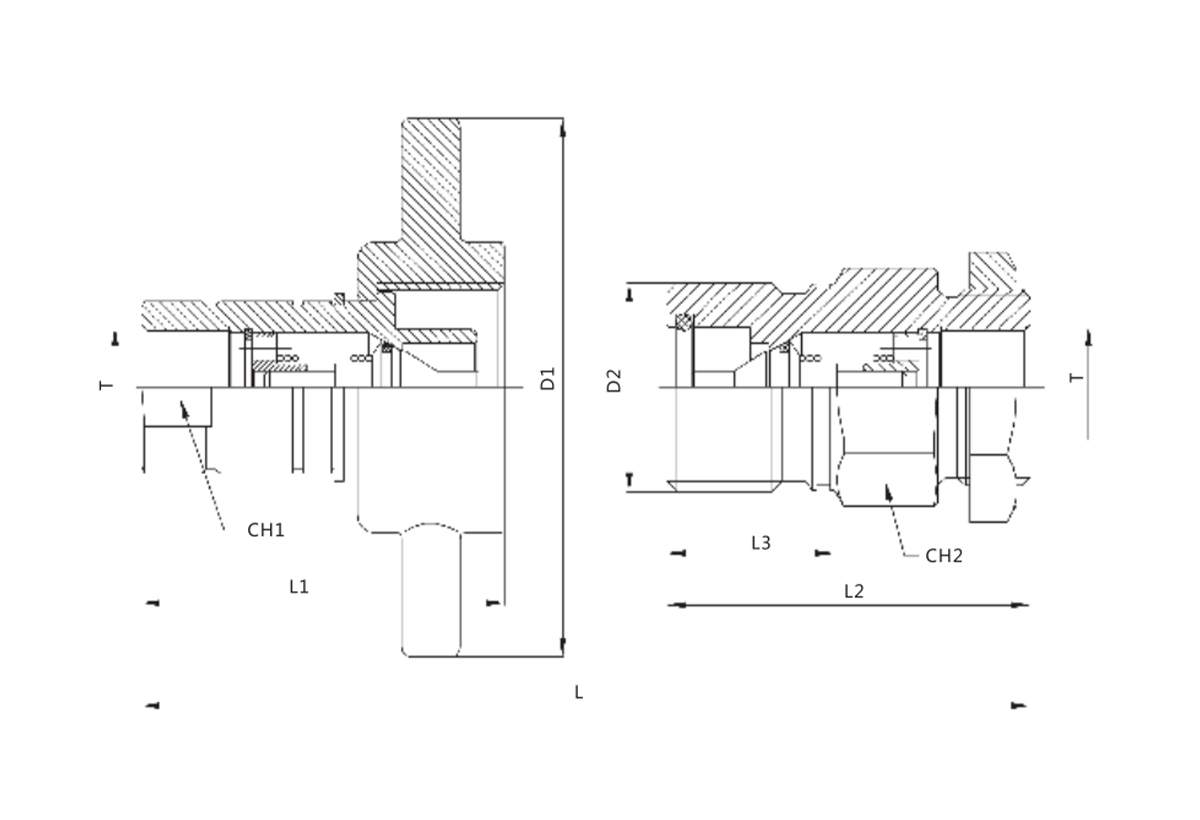

    PART No. ISO L L1 L2 L3 D1 D2 CH1 CH2 T
    GT-L3-06-SP DN20 133 78 78 36 115.5 1-3/4-10UN 33 46 ZG3/4 G3/4 NPTF3/4
    GT-L3-08-SP DN25 145 83 83 41 115.5 2-1/8-12UN 40 55 ZG1 G1 NPTF1
