GT-HSP Close type hydraulic quick coupling ( steel )

● Poppet valves available to prevent uncoupled leakage.
● Poppet valves open automatically when coupled, within . rated working pressure, to keep the flow expeditely.
● Critical parts are hardened for durability.
● Dependable ball-locking mechanism holds the mating halves together.
● Socket and plug are precision machined from solid bar stock.
● Compatible with NITTO HSPcupla Series.

The GT-HSP Series brings to the industry a proven design for use on construction equipment, forestry equipment, oil tools, Oil equipment, steel mill machinery, and other demanding hydraulic applications.
Get A Quote
  • Parameter
  • Contact Us
  • Body Size(in) 1/4 3/8 1/2 3/4 1
    Code 02 03 04 06 08
    Rated Pressure(Mpa) 34.5 27.6 27.6 20.7 20.7
    Rated Flow(L/min) 11.5 23 45.5 106 190
    Temperature Range(FKM) -20℃~+100℃

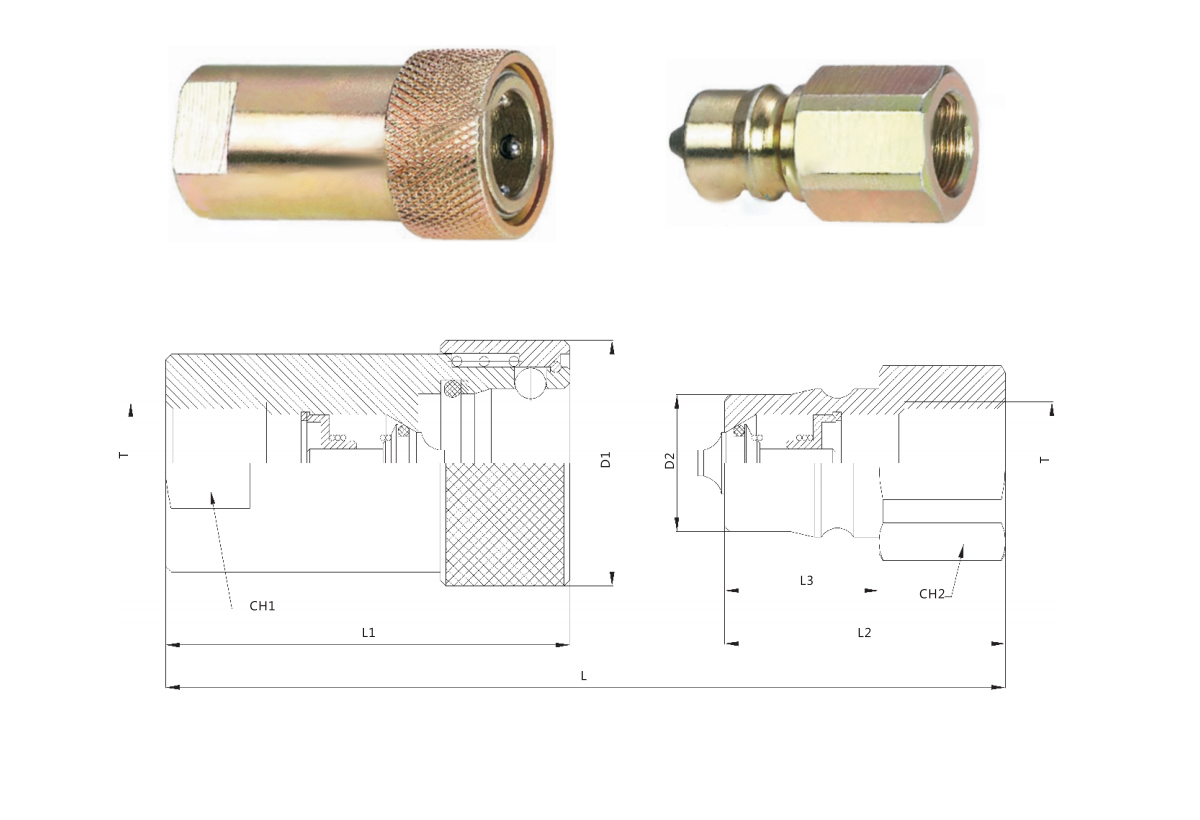

    PARTNo . ISO L L1 L2 L3 D1 D2 CH1 CH2 T
    GT-HSP-02-SP DN6.3 72 53.5 36 17 28.5 14.2 19 19 ZG1/4 G1/4  NPT1/4
    GT-HSP-03-SP DN10 76 60.5 38 22.5 33 18.2 23 23 ZG3/8 G3/8  NPT3/8
    GT-HSP-04-SP DN12.5 95 72 50 27.5 43.5 24.3 35 32 ZG1/2
    ZG3/4     		 G1/2
    G3/4     		 NPT1/2
    NPT3/4
    GT-HSP-08-SP DN25 119 g3 61 36 58.2 36.2 46 41 ZG1  G1  NPT1
