KZD Steel internal thread medium pressure gas-liquid quick connector

The KZD steel internal thread medium pressure gas-liquid quick connector is a type of coupling designed to quickly and easily connect or disconnect the gas and liquid lines in medium-pressure applications. It is commonly used in industrial and manufacturing settings where an efficient and reliable fluid transfer is important.
The KZD connector features an internal thread that allows it to be securely screwed onto a compatible threaded fitting. The connector is made of steel, which provides strength and durability, and is designed to withstand the high pressures associated with many gas and liquid transfer applications.
The quick-connect design of the KZD connector makes it easy to attach and detach hoses or other fluid transfer lines, which can save time and improve efficiency in industrial or manufacturing settings. The connector is designed to create a tight and secure seal, which helps to prevent leaks and minimize the risk of spills or other accidents.
Get A Quote
  • Parameter
  • Contact Us
  • Body Size(in) 1/8 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2
    Code 01 02 03 04 06 08 10 12 16
    Rated Pressure ( Mpa ) 7 7 7 7 7 7 5.5 5.5 5.5
    Rated Flow(L/min) 3.8 11.5 23 45.5 106 190 330 830 900
    Temperature Range(NBR) -20℃ ~ +100℃

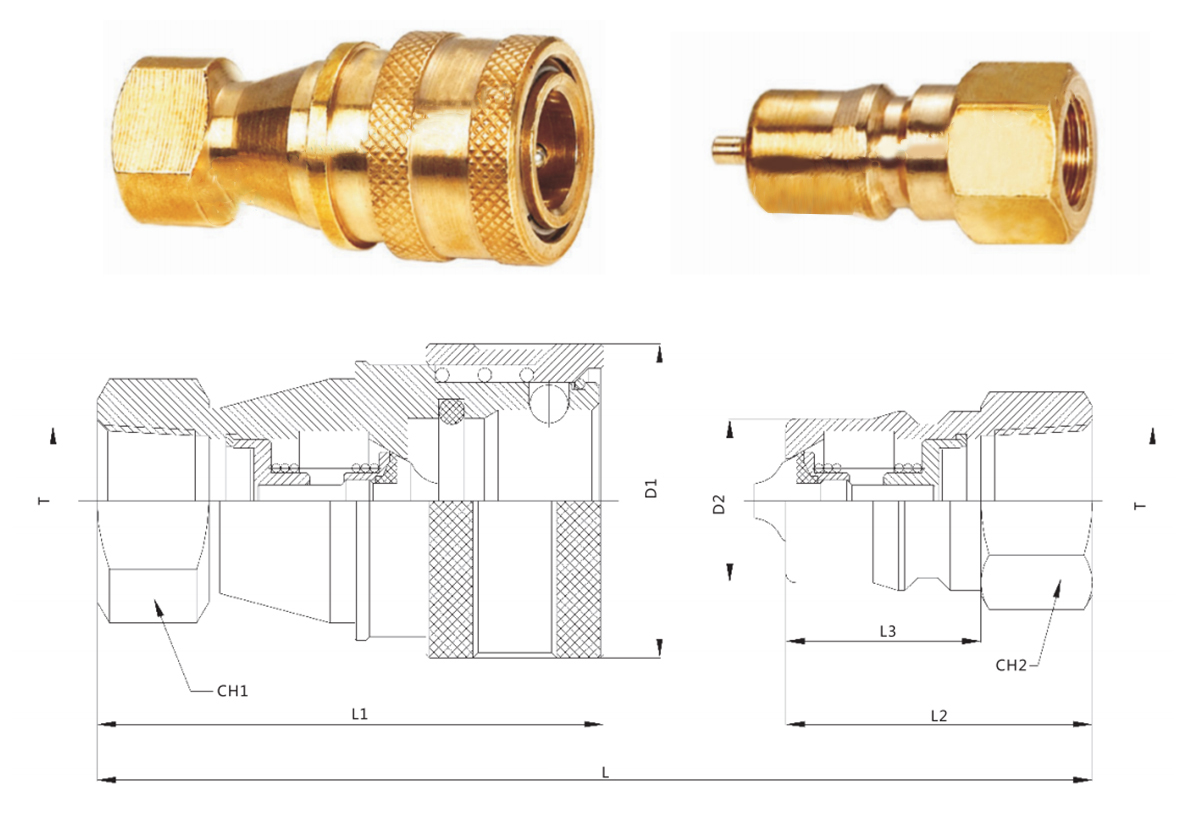

    PART No. ISO L L1 L2 L3 D1 D2 CH1 CH2 T
    KZD-01-SP DN5 59 48 29 19 24 10.9 14 14 ZG1/8 G1/8 NPT1/8
    KZD-02-SP DN6.3 72 58 36 22.5 27 14.2 19 17 ZG1/4 G1/4 NPT1/4
    KZD-03-SP DN10 80 65 40 25 35 19.1 22 22 ZG3/8 G3/8 NPT3/8
    KZD-04-SP DN12.5 89 72.5 44 28 45 23.6 29 27 ZG1/2 G1/2 NPT1/2
    KZD-06-SP DN20 105 88 52 36 54 31.5 36 36 ZG3/4 G3/4 NPT3/4
    KZD-08-SP DN25 125 102 62 40 64.5 37.8 41 41 ZG1 G1 NPT1
    KZD-10-SP DN31.5 141 115 70 45 69 45 54 52 ZG1-1/4 G1-1/4 NPT1-1/4
    KZD-12-SP DN40 150 127 75 49 79 50 60 60 ZG1-1/2  G1-1/2 NPT1-1/2
    KZD-16-SP DN40 160 132 80 52 102 70 77 77 ZG2 G2 NPT2
