GT-C1 Ball valves type hydraulic quick coupling

GT-C1 ball valve type hydraulic quick coupling is a type of hydraulic coupling used in fluid power applications to quickly connect and disconnect hydraulic lines. It is a high-performance coupling designed for demanding hydraulic applications that require a reliable and leak-free connection.
The GT-C1 coupling features a ball valve design that provides full flow through the coupling with a minimum pressure drop. The ball valve design allows for a straight-through flow path, which results in less turbulence and pressure drop compared to other types of hydraulic couplings.
The GT-C1 coupling is also designed with a locking mechanism to ensure a secure connection between the two halves of the coupling. The locking mechanism prevents accidental disconnection, which is particularly important in applications where hydraulic lines are subjected to vibration or movement.
Get A Quote
  • Parameter
  • Contact Us
  • Body Size(in) 1/4 3/8 1/2 3/4 1
    Code 02 03 04 06 08
    Rated Pressure ( Mpa )
    Steel 34.5 27.6 27.6 20.7 20.7
    Stainess Steel 13.8 13.8 10.4 10.4 7
    Brass 7 7 7 7 7
    Rated Flow(L/min) 11.5 23 45.5 106 190
    Temperature Range(NBR) -20℃ ~ +100℃
    Temperature Range(FKM) -20℃ ~ +180℃

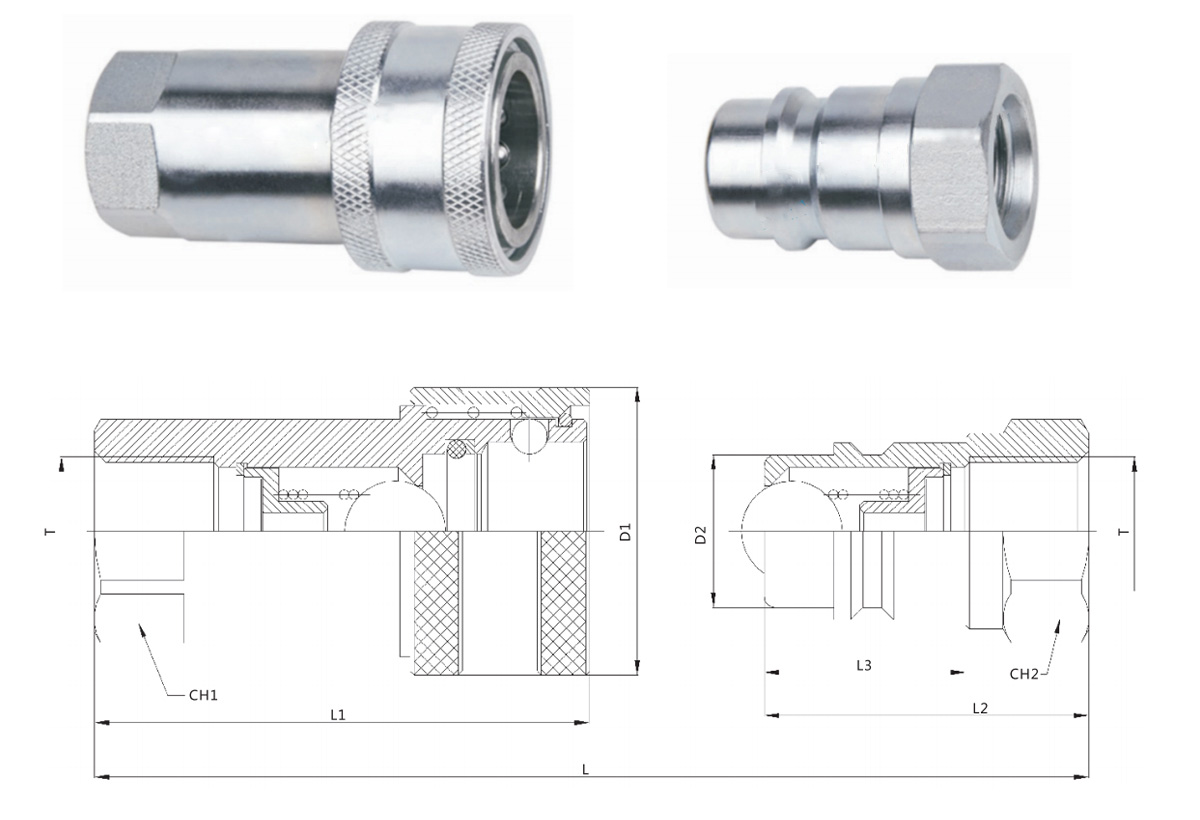

    PART No. ISO L L1 L2 L3 D1 D2 CH1 CH2 T
    GT-C1-02T-SP DN6.3 72 53.5 37.5 18.5 27.5 14.2 19 19 ZG1/4 G1/4 NPT1/4
    GT-C1-03T-SP DN10 83 63 40 22 34 19 24 24 ZG3/8 G3/8 NPT3/8
    GT-C1-04T-SP DN12.5 88 66.5 43.5 27 38.5 20.5 27 27 ZG1/2 G1/2 NPT1/2
    GT-C1-06T-SP DN20 108 82 53.5 32 48 28 34 34 ZG3/4 G3/4 NPT3/4
    GT-C1-08T-SP  DN25 127 96.5 63 38 56 31.3 41 41 ZG 1 G1 NPT 1
