GT-TNV Close type hydraulic quick coupling

● Poppet valves available to prevent uncoupled leakage.
● Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
● Critical parts are hardened for durability.
● Dependable ball-locking mechanism holds the mating halves together.
● Socket and plug are precision machined from solid bar stock.
● Compatible with F ASTER TNV Series.

The GT-TNV Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
Get A Quote
  • Parameter
  • Contact Us
  • Body Size(in) 3/8 1/2
    Code 03 04
    Rated Pressure(Mpa) 27.6 27.6
    Rated Flow(L/min) 23 45.5
    Temperature Range(FKM) -20℃~+100℃

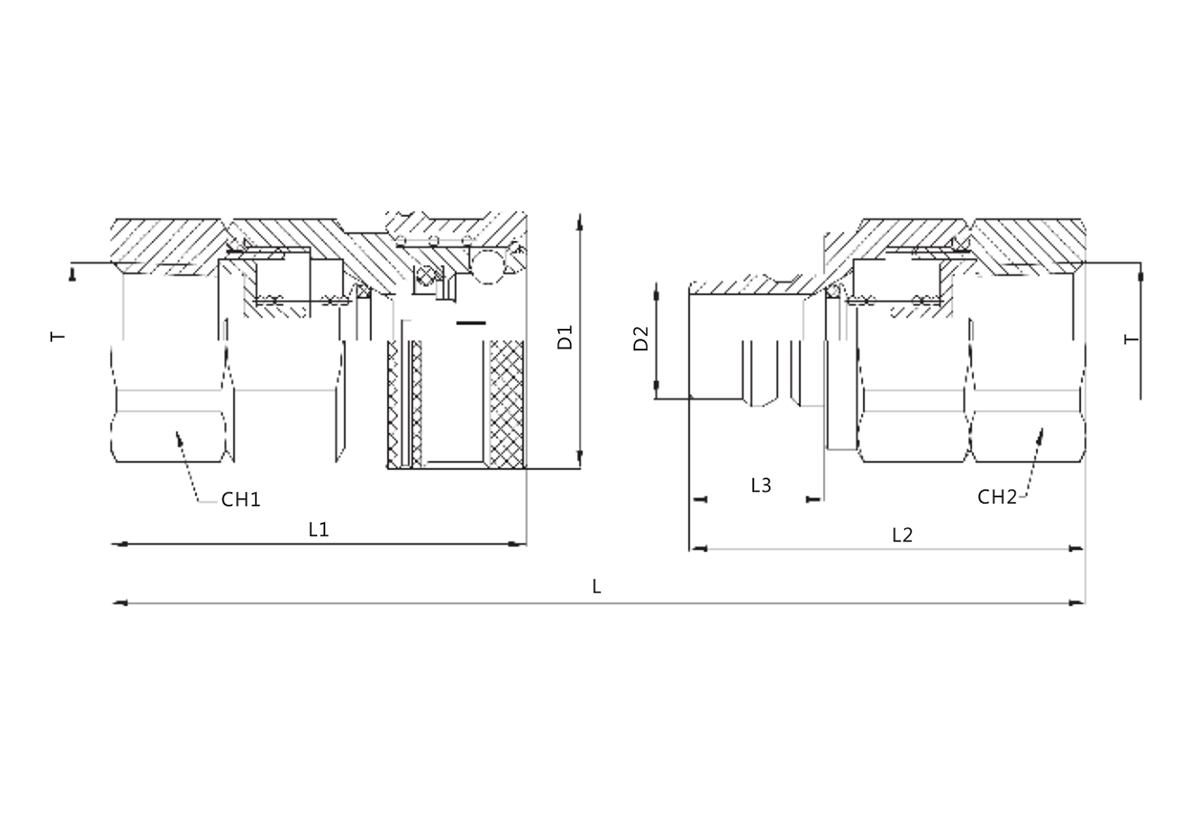

    PARTNo . ISO L L1 L2 L3 D1 D2 CH1 CH2 T
    GT-TNV-03-SP DN10 82 50.5 49 18.5 30.5 12.8 25.4 25.4 ZG3/8 G3/8 NPT3/8
    GT-TNV-04-SP DN12.5 94 57 54.5 18.5 35 16 30.2 30.2 ZG1/2 G1/2  NPT1/2
