KZE-B Thread sleeve locked type high pressure hydraulic quick coupling

The KZE-B thread sleeve locked type high pressure hydraulic quick coupling is a type of hydraulic coupling that is designed for high-pressure applications. It is commonly used in hydraulic systems for industrial machinery, construction equipment, and other heavy-duty applications.
This type of coupling features a threaded sleeve that locks the two halves of the coupling together, ensuring a secure and leak-free connection. The coupling is made of high-quality materials, such as carbon steel, stainless steel, or brass, to ensure durability and reliability in harsh environments.
The KZE-B coupling is designed for high-pressure hydraulic applications and can handle pressures up to 700 bar (10,000 psi). It also has a high flow rate, allowing for fast and efficient fluid transfer. The coupling is available in various sizes and configurations to suit different types of hydraulic systems and applications.
Get A Quote
  • Parameter
  • Contact Us
  • Body Size(in) 1/8 1/4 3/8 1/2 3/4 1-1/1/4 1-1/1/2 2
    Code 1 2 3 4 6 10 12 16
    Rated Pressure ( Mpa ) 34.5 20.7 20.7 20.7 20.7 13.8 13.8 10.4
    Rated Flow(L/min) 38 11.5 23 45.5 106 330 830 900
    Temperature Range(NBR) -20℃ ~ +100℃

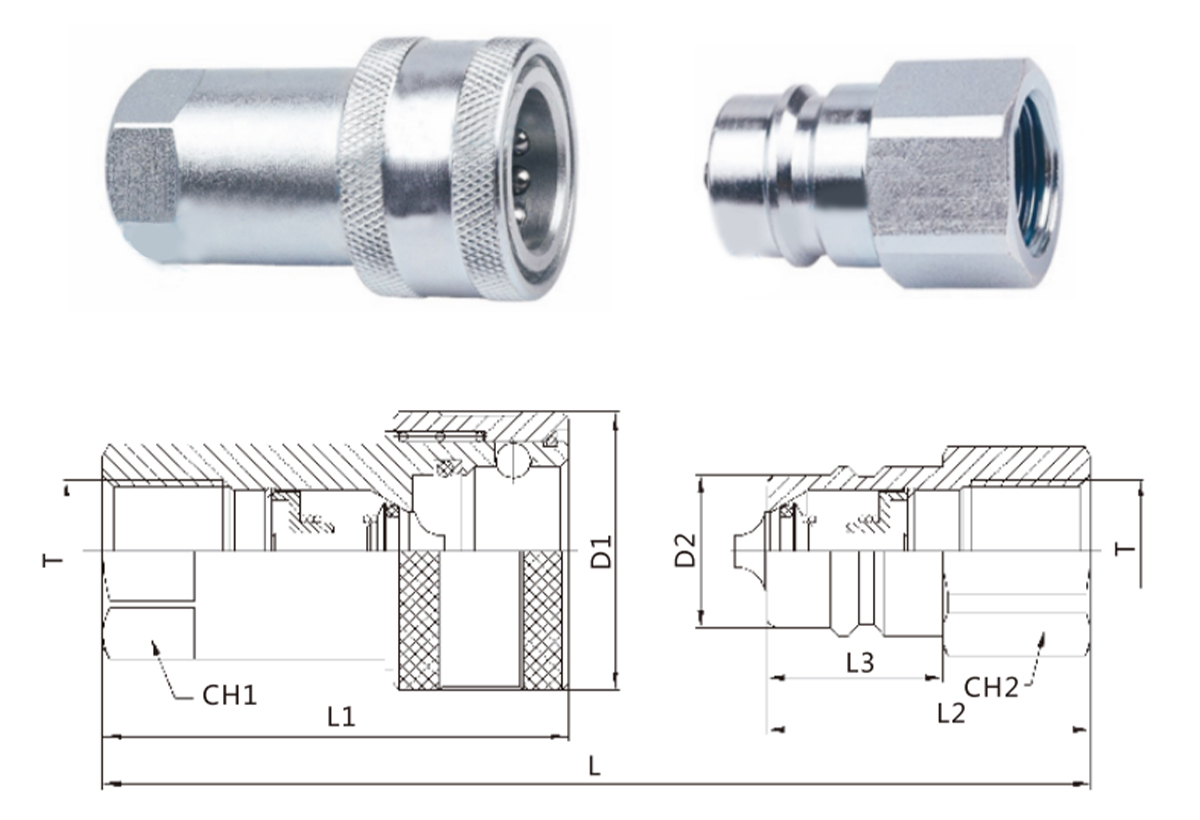

    PART No. ISO L L1 L2 L3 D1 D2 CH1 CH2 T
    KZE-01-SP DN5 70 49 36 17 28 13 17 17 ZG1/8 G1/8 NPT1/8
    KZE-02-SP DN6.3  72 58 36 22.5 27 14.2 19 19 ZG1/4 G1/4 NPT1/4
    KZE-03-SP DN10  80 65 40 25 35 19.1 22 22 ZG3/8 G3/8 NPT3/8
    KZE-04-SP DN12.5 90 66 46 25 39.5 21.7 27 27 ZG1/2  G1/2 NPT1/2
    KZE-06-SP DN20 111 79 55 26 498 30 34 34 ZG3/4 G3/4 NPT3/4
    KZE-08-SP DN25  120 94 59.5 36 56 34.3 41 41 ZG1 G1 NPT1
    KZE-10-SP DN31.5 141 115 70 45 69 45 54 52 ZG1-1/4 G1-1/4 NPT1-1/4
    KZE-12-SP DN40 150 124 75 49 79 50 60 60 ZG1-1/2 G1-1/2  NPT1-1/2
    KZE-16-SP DN50 160 132.5 80 52 102 70 77 77 ZG2 G2 NPT2
