GT-L2 Heavy-dust wing nut thread type hydraulic quick coupling

The GT-L2 Heavy-Dust Wing Nut Thread Type Hydraulic Quick Coupling is a type of hydraulic coupling used to connect and disconnect fluid lines quickly and easily. This type of coupling is commonly used in hydraulic systems in industrial applications, such as manufacturing, construction, and agriculture.
The GT-L2 coupling is designed with a wing nut thread type, which provides a secure connection and is easy to use. The heavy-duty construction of the coupling makes it suitable for use in harsh environments, where dust and debris can be a problem.
This type of coupling is designed to prevent fluid loss and minimize air inclusion during connection and disconnection. It features a poppet valve design that allows for a high flow rate and minimal pressure drop.
Get A Quote
  • Parameter
  • Contact Us
  • Body Size(in) 1 1-2/4
    Code 08 10
    Rated Pressure ( Mpa ) 20.7 20.7
    Rated Flow(L/min) 189 189
    Temperature Range(NBR) -20℃ ~ +100℃

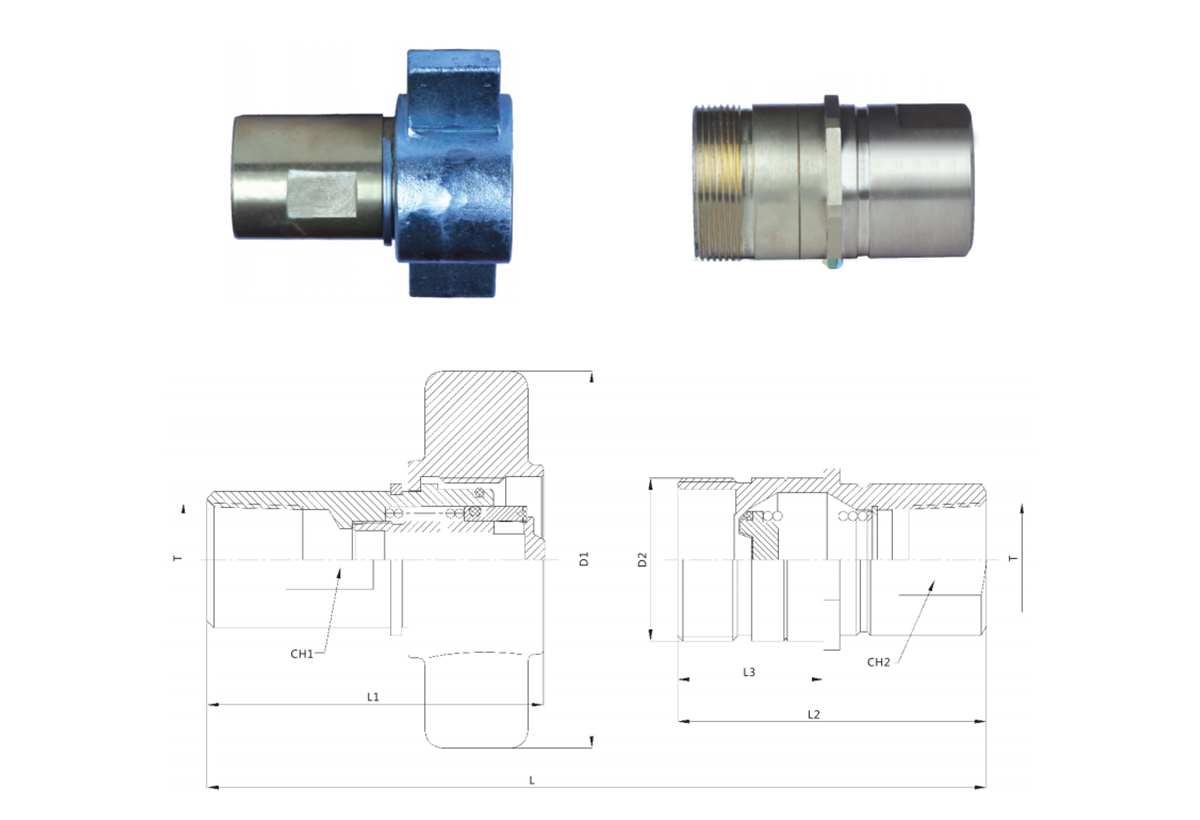

    PART No. ISO L L1 L2 L3 D1 D2 CH1 CH2 T
    GT-L2-08-SP DN25 157 98 90 42.5 110 1-7/8-12UN 36 39.5 ZG1 G1 NPTF1
    GT-L2-10-SP DN31.5 165 105.5 94 44.5 132 2-1/8-12UN 45 48 ZG1-1/4 G1-1/4 NPTF1-1/4
