GT-L1 Thread locked type hydraulic quick coupling

● New valve design, it cans resistance damage from high flow and the pressure of impulse that providing advanced performance.
● Machined from solid steel barstock for durability.
● The series employs a threaded sleeve locking mechanism, mates with matching male threads on the nipple. The two halves must be manually threaded together for connection.
● New chrome plating treatment provides advanced anti-rust performance.
● A threaded valve retainer provides a valve stop that assures

Mobile equipment, agriculture machine and universal industrial equipment.
Get A Quote
  • Parameter
  • Contact Us
  • Body Size(in) 1/4 3/8 1/2 3/4 1 1-1/2 2
    Code 02 03 04 06 08 10 16
    Rated Pressure ( Mpa ) 69 69 69 69 52 41.5 34.5
    Rated Flow(L/min) 11.5 23 45.5 106 190 830 900
    Temperature Range(NBR) -20℃ ~ +100℃

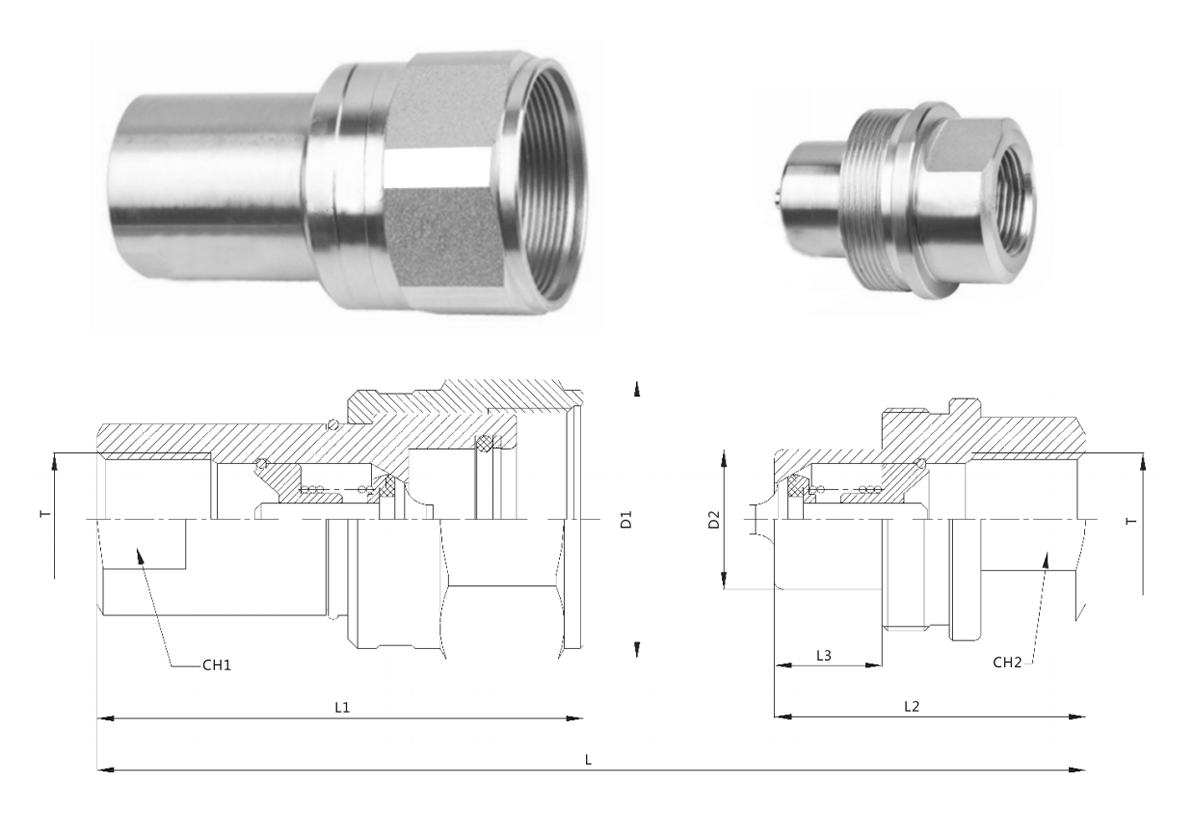

    PART No. ISO L L1 L2 L3 D1 D2 CH1 CH2 T
    GT-L1-02-SP DN6.3 72 59 36 12.5 S32 15 19 19 ZG1/4  G1/4 NPT1/4
    GT-L1-03-SP DN10 82 66.5 40.5 16 S36 19 22 22 ZG3/8  G3/8 NPT3/8
    GT-L1-04-SP DN12.5 98 76.5 49 17 S41 22 27 27 ZG1/2  G1/2 NPT1/2
    GT-L1-06-SP DN20 112 89.5 56 19 S50 29 35 35 ZG3/4  G3/4 NPT3/4
    GT-L1-08-SP DN25 133 5.5 66 22 S65 36 41 41 ZG 1 G1 NPT1
    GT-L1-12-SP DN40 203 172 101 40.2 99.5 57 63.5 63.5 ZG1-1/2 G1-1/2 NPT1-1/2
    GT-L1-16-SP DN50 238 201 118 47 114 69.4 75 75 ZG2 G2 NPT2
