GT-CVV Manual thread locked type high flow hydraulic quick coupling

The GT-CVV manual thread locked type high flow hydraulic quick coupling is a type of hydraulic connector used to quickly and easily connect and disconnect hydraulic lines. This coupling is designed for use in high-flow applications, where a large volume of hydraulic fluid needs to be transferred quickly and efficiently.
The GT-CVV manual thread locked type high flow hydraulic quick coupling consists of two halves, which are connected and disconnected by manually turning a locking sleeve. The coupling features a valve in each half, which opens when the halves are joined to allow hydraulic fluid to flow. When the halves are separated, the valves close to prevent leaks and spills.
This type of quick coupling is commonly used in heavy equipment, such as construction machinery, agricultural equipment, and industrial machinery. It is designed to withstand high pressures and heavy use and is made from durable materials such as steel or stainless steel.
Get A Quote
  • Parameter
  • Contact Us
  • Body Size(in) 1/4 3/8 1/2 3/4 1 1-1/2
    Code 02 03 04 06 08 12
    Rated Pressure ( Mpa )
    Steel 48 38 34 37 33 37
    Stainess Steel 48 38 34 37 33 37
    Rated Flow(L/min) 13 30 75 150 250 450
    Temperature Range(NBR) -20℃ ~ +100℃
    Temperature Range(FKM) -20℃ ~ +180℃

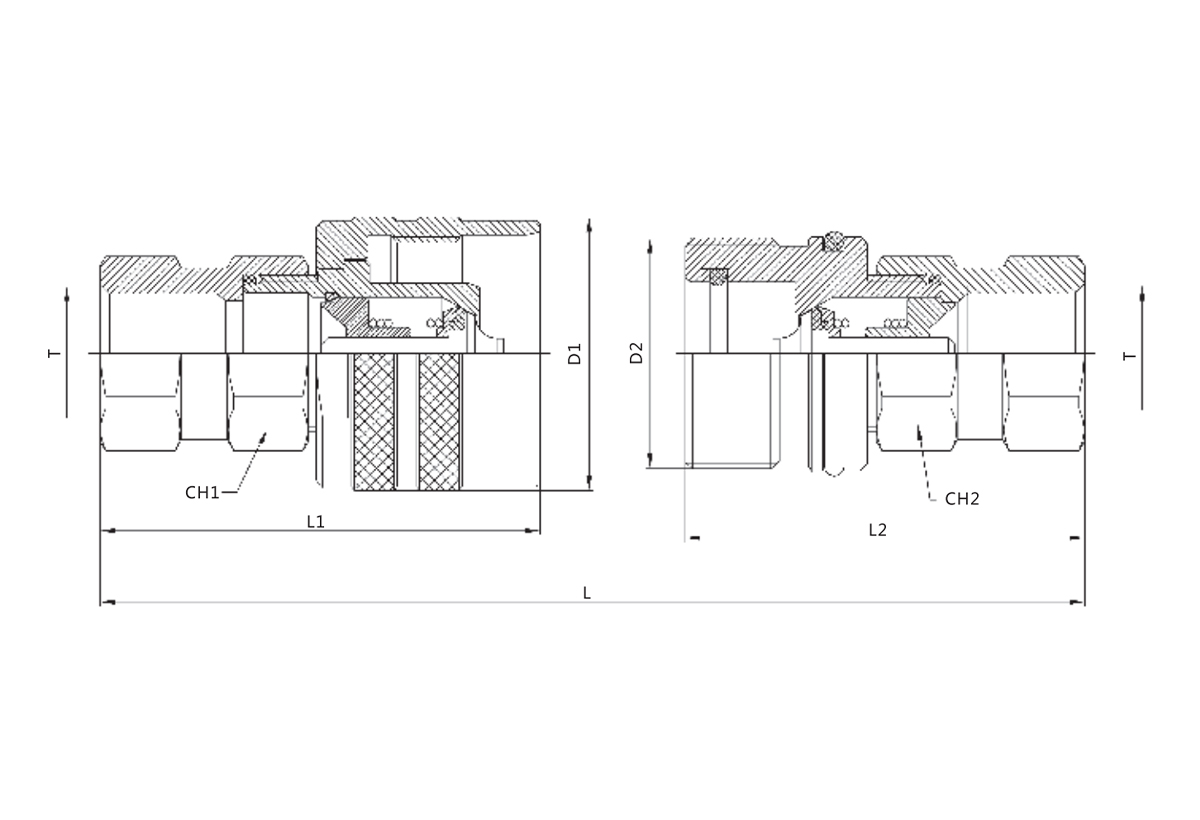

    PART No. ISO L L1 L2 D1 D2 CH1 CH2 T
    GT-CVV-02T-SP DN6.3 93 58.5 60 34 M24*2 19 19 ZG1/4  G1/4 NPT1/4
    GT-CVV-03T-SP DN10  90 61 55.5 34 M28*2 22 22 ZG3/8 G3/8  NPT3/8
    GT-CVV-04T-SP DN12.5 103 67.5 61.5 42 M36*2 27 27 ZG1/2 G1/2 NPT1/2
    GT-CVV-06T-SP DN20 125 73.5 83.5 48 M42*2 36 36 ZG3/4 G3/4 NPT3/4
    GT-CVV-08T-SP DN25  155 94.5 94.5 56.5 M48*3 41 41 ZG 1 G 1 NPT 1
    GT-CVV-12T-SP DN40 211 134 127.5 87 M70*3 55 55 ZG1-1/2 G1-1/2 NPT1-1/2
