GT-K1 American type hydraulic quick coupling

● The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy cleaning in applications where the same lines are used for more than one media.
● GT-K1 couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
● GT-K1nipples are available in steel, stainless steel, brass.
● The GT-K1 is an "Interchange" coupling because the dimen-sionally and functionally can interchange with similar couplings made by other manufactures.
● Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.

The GT-K1 Series are non-valved couplings for applications where maximum flow is required. Their somooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steamwashers, carpet cleaners and mold coolant lines and many other non-valved applications.
Get A Quote
  • Parameter
  • Contact Us
  • Body Size(in) 1/4 3/8 1/2 3/4 1
    Code 02 03 04 06 08
    Rated Pressure(Mpa)
    Steel 27.6 20.7 20.7 20.7 20.7
    Stainess Steel 13.8 10.4 10.4 10.4 10.4
    Brass 7 7 7 7 7
    Rated Flow(L/min) 23 45.5 45.5 45.5 45.5
    Temperature Range(NBR)  -20℃ ~+100℃
    Temperature Range(FKM)  -20℃ ~+180℃

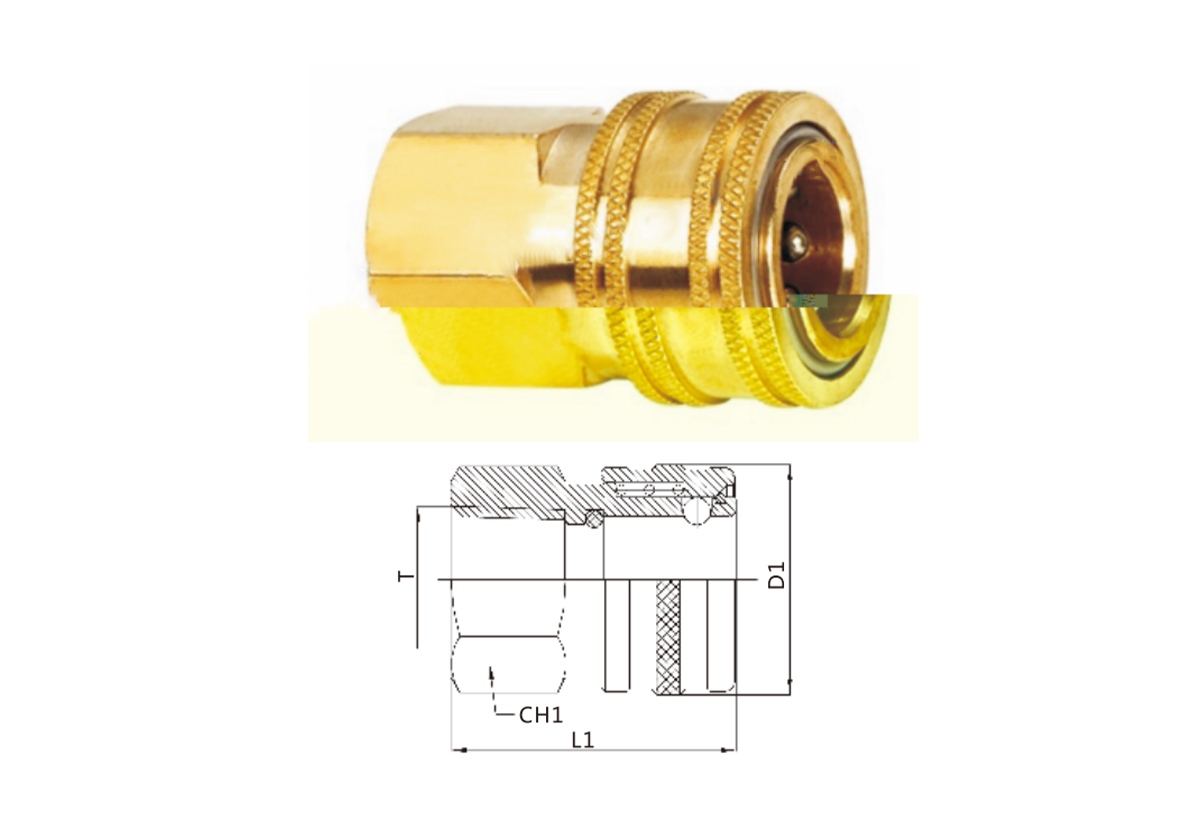

    PARTNo . L D1 CH1 T
    GT-K1-02B-SF 25 16.3 14 ZG1/8 G1/8 NPT1/8
    GT-K1-03B-SF 37.5 24 21 ZG1/4 G1/4  NPT1/4
    GT-K1-04B-SF 40.5 29 24 ZG3/8 G3/8  NPT3/8
    GT-K1-06B-SF 41.5 33.5 28.5 ZG1/2 G1/2  NPT1/2
    GT-K1-08B-SF 59 49.5 46 ZG1 G1  NPT1

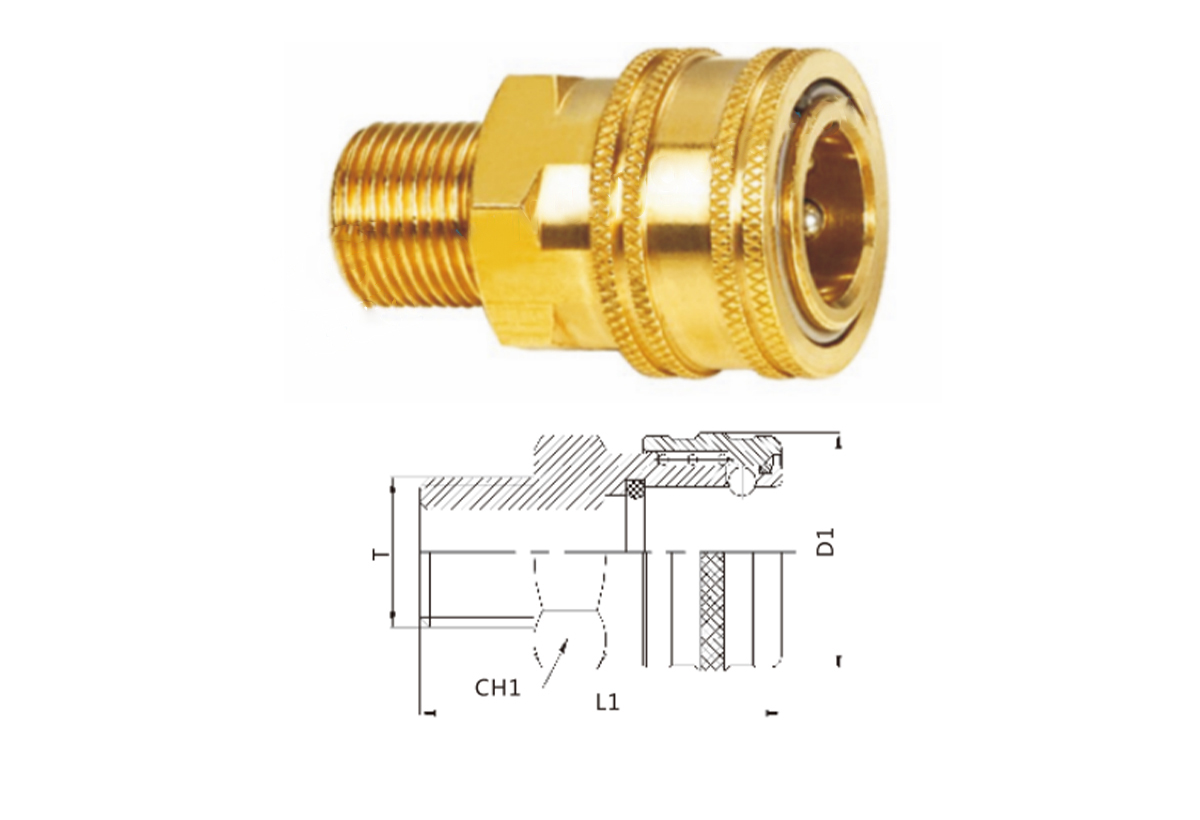

    PART No . L D1 CH1 T
    GT-K1-02B-SM 44 24 21 ZG1/4 G1/4  NPT1/4
    GT-K1-03B-SM 44.5 29 24 ZG3/8 G318 NPT3/8
    GT-K1-04B-SM 51 33.5 28.5 ZG1/2 G1/2 NPT1/2
    GT-K1-08B-SM 65 49.5 46 ZG1 G1 NPT1

    PART No . L L3 D2 CH2 T
    GT-K1-01B-PF 24 11 6.3 13 ZG1/8 G1/8 NPT1/8
    GT-K1-02B-PF 37 19.5 10.2 17 ZG1/4 G1/4 NPT1/4
    GT-K1-03B-PF 41.5 22.5 12.3 22 ZG3/8 G3/8 NPT3/8
    GT-K1-04B-PF 45 24.7 15.4 24 ZG1/2 G1/2 NPT112
    GT-K1-08B-PF 56.5 30.5 30.6 41 ZG1 G1 NPT1

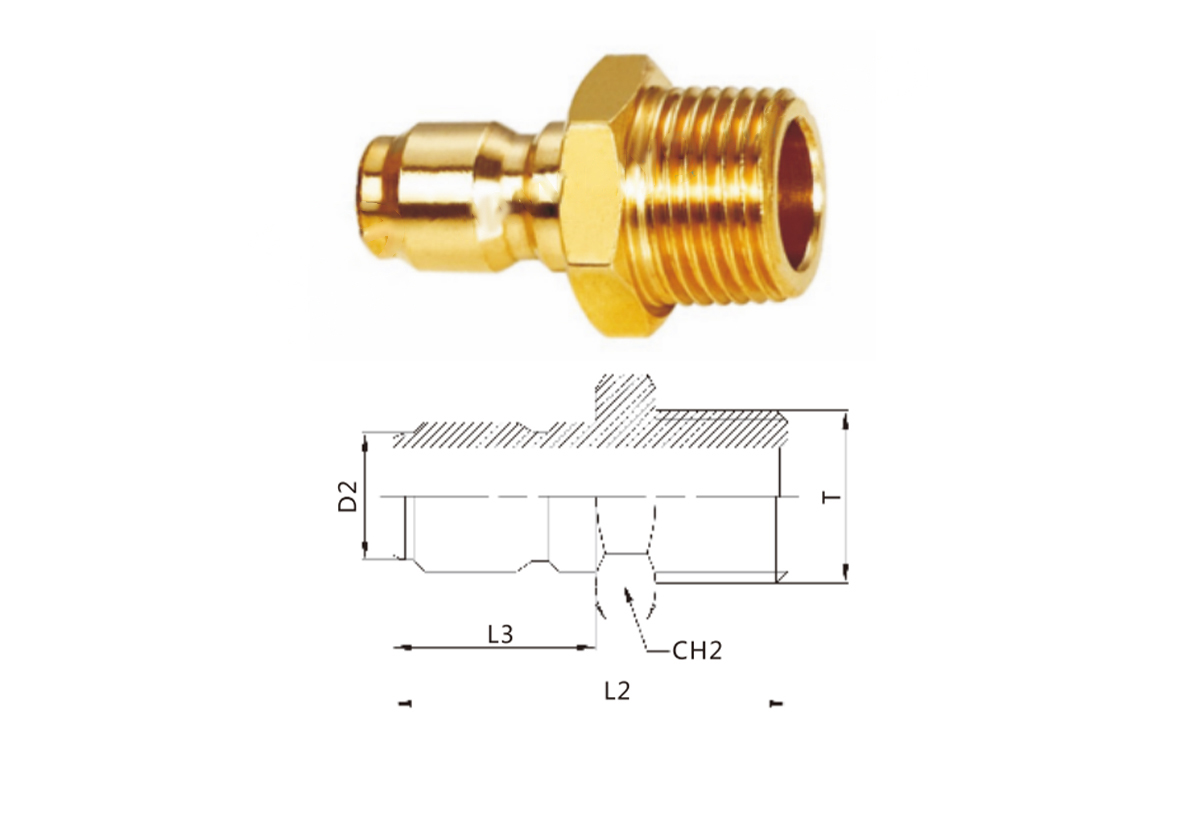

    PART No . L L3 D2 CH2 T
    GT-K1-02B-PM 39.5 19.5 10.2 14 ZG1/4   G1/4 NPT1/4
    GT-K1-03B-PM 43 22.5 12.3 17 ZG3/8   G3/8 NPT3/8
    GT-K1-04B-PM 48 24.7 15.4 22 ZG1/2   G1/2 NPT1/2
    GT-K1-08B-PM 63 30.5 30.6 41 ZG1 G1 NPT1
