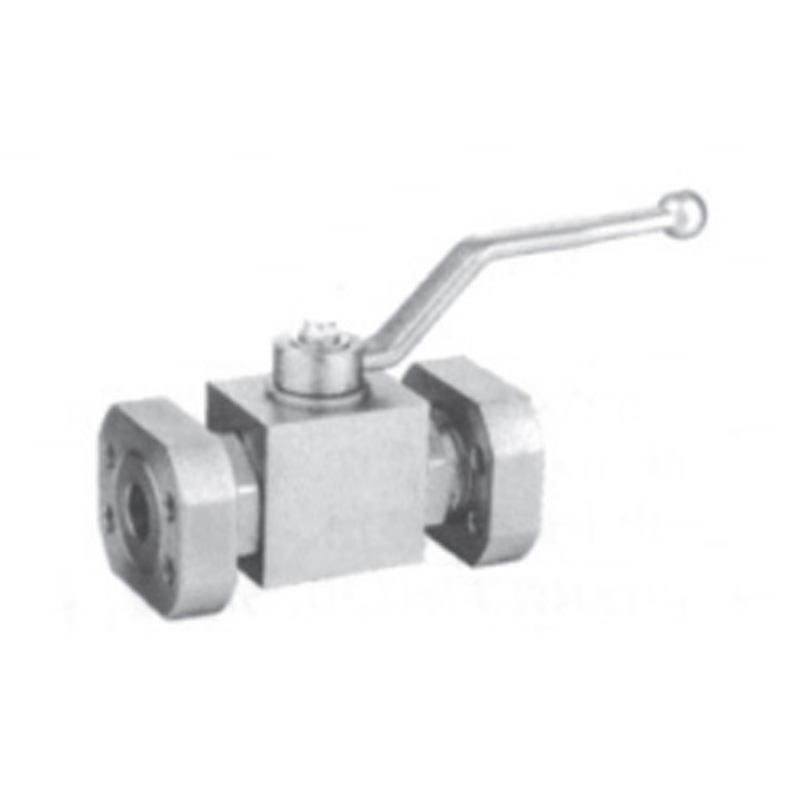

Model | Flange Specifications | DN | D | L | L1 | L2 | E | F | B | H | A | C | H1 | M | |
KHBG-15-F3 | 1/2 | 15 | 15 | 104 | 48 | 15 | 38.1 | 17.5 | 38 | 46 | 54 | 46 | 19 | M8 | |
KHBG-20-F3 | 3/4" | 20 | 19 | 121 | 60 | 18 | 47.6 | 22.3 | 48 | 56 | 65 | 52 | 24 | M10 | |
KHBG-25-F3 | 1" | 25 | 24 | 133 | 64 | 18 | 52.4 | 26.2 | 58 | 63 | 70 | 59 | 29 | M10 | |
KHBG-32-F3 | 11/4" | 32 | 30 | 163 | 72 | 18 | 58.7 | 30.2 | 68 | 75 | 79 | 73 | 34 | M10 | |
KHBG-40-F3 | 11/2" | 40 | 38 | 168 | 80 | 18 | 69.9 | 35.7 | 80 | 86 | 94 | 83 | 40 | M12 | |
KHBG-50-F3 | 2" | 50 | 46 | 186 | 96 | 25 | 77.8 | 42.9 | 96 | 102 | 102 | 97 | 48 | M12 | |
KHBG-65/50-F3 | 21/2" | 50 | 46 | 174 | 96 | 26 | 88.9 | 50.8 | 96 | 102 | 114 | 109 | 48 | M12 |
Model | Flange Specifications | DN | D | L | L1 | L2 | E | F | B | H | A | C | H1 | M | |
KHBG-15-F6 | 1/2" | 15 | 15 | 104 | 48 | 16 | 40.5 | 18.2 | 38 | 46 | 56 | 48 | 19 | M8 | |
KHBG-20-F6 | 3/4" | 20 | 19 | 121 | 60 | 18 | 50.8 | 23.8 | 48 | 56 | 71 | 60 | 24 | M10 | |
KHBG-25-F6 | 1" | 25 | 24 | 133 | 64 | 24 | 57.2 | 27.8 | 58 | 63 | 81 | 70 | 29 | M10 | |
KHBG-32-F6 | 11/4 | 32 | 30 | 163 | 72 | 26 | 66.6 | 31.8 | 68 | 75 | 95 | 78 | 34 | M10 | |
KHBG-40-F6 | 11/2 | 40 | 38 | 168 | 80 | 28 | 79.3 | 36.5 | 80 | 86 | 113 | 95 | 40 | M12 | |
KHBG-50-F6 | 2" | 50 | 46 | 186 | 96 | 30 | 96.8 | 44.5 | 96 | 102 | 133 | 114 | 48 | M12 |
